Large Image :WD-DL01 Mini LED Downlight
Detailed Product Description
WD-DL01 Dimmable 12V Under Cabinet Light Mini Recessed 3W 12V LED Downlight Dimmable for Residential & Accent Lighting
Introduction:
WEDO’s LED round recessed down lights are energy-efficient LED recessed retrofits designed to replace conventional halogen and compact fluorescent (CFL) lights. They are widely used in hospitality, as well as in commercial, and residential locales. WEDO’s down lights come with reliable constant-current or constant voltage external drivers which guarantee reliable and excellent electrical performance.

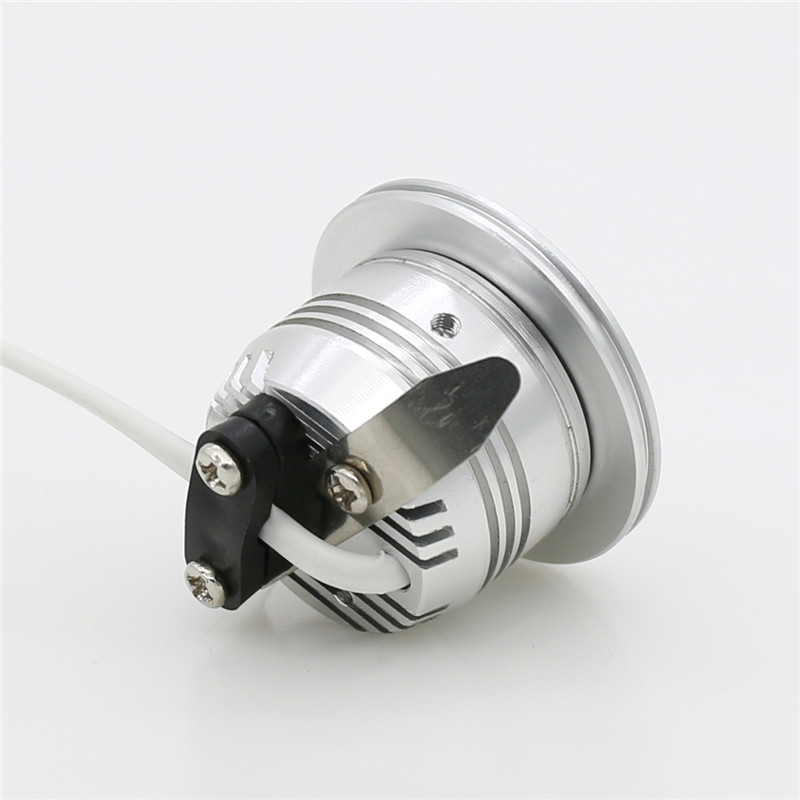

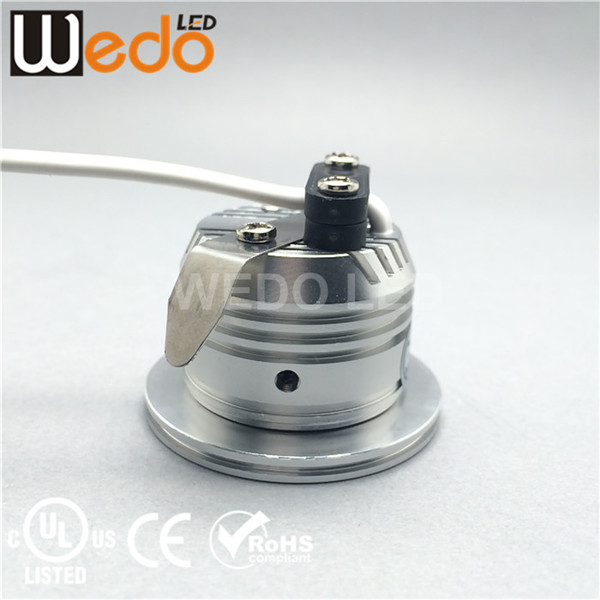

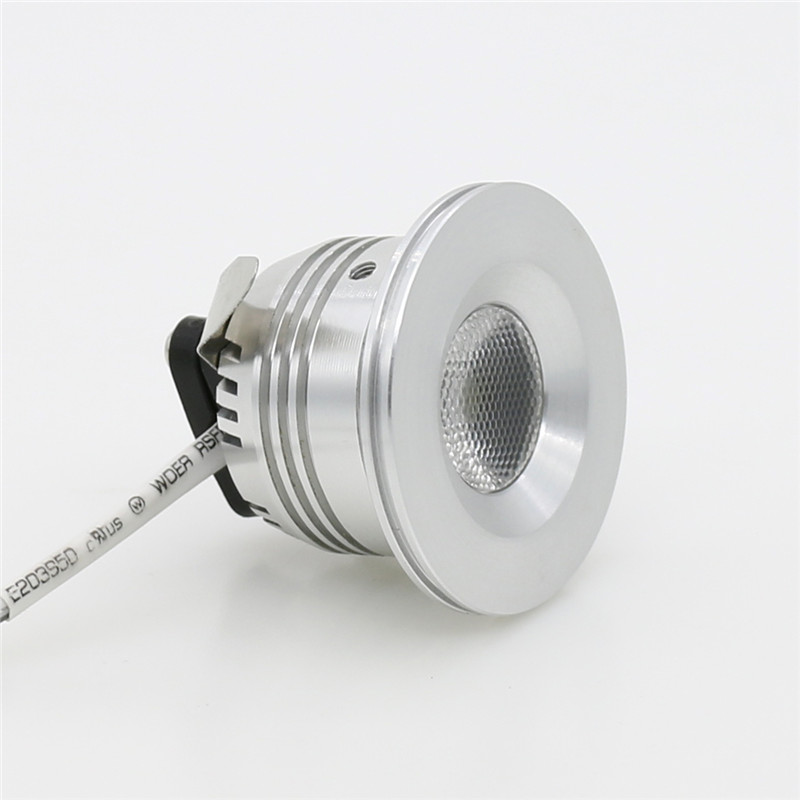

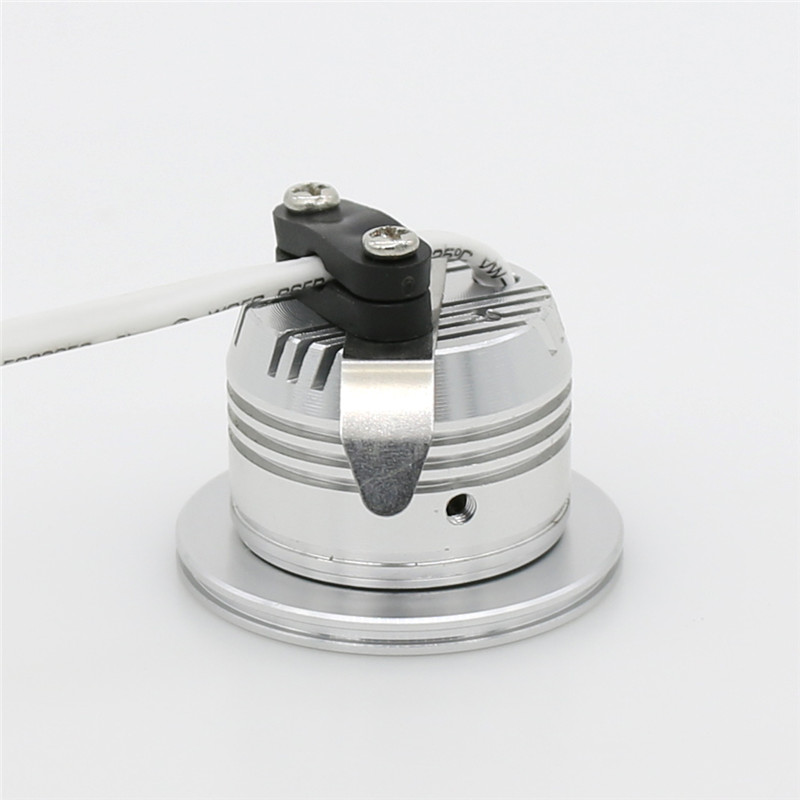

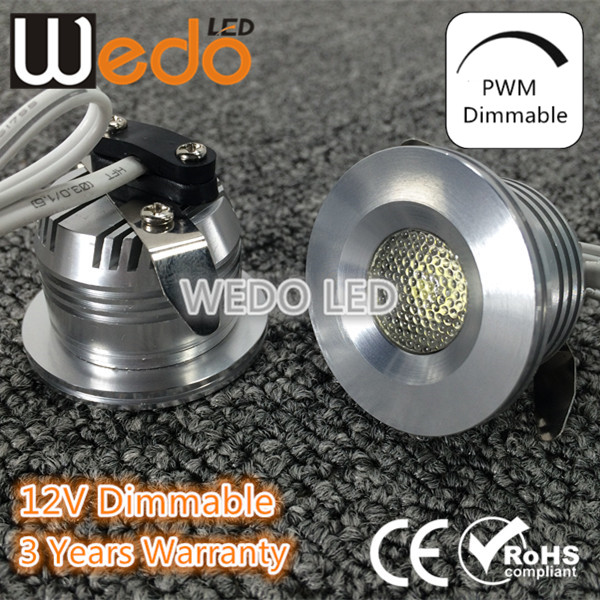

Product Picture:
Technical Parameters:
| Dimmable Mini LED Under Cabinet Light | |||
| Model | WD-DL01 | ||
| Input Voltage | 12V DC | ||
| LED Power | 3 Watt | ||
| Color Temperature |
Cool White 6000-6500K |
Neutral White 4000-4500K |
Warm White 2800-3300K |
| LED Chp Brand | Epistar | ||
| Lumen Output | 180lm | 165lm | 150lm |
| Beam Angle | 15°, 30°, 45°, 60° | ||
| CRI | >80 | ||
| IP Class | IP44 Indoor Use Only | ||
| Dimension | ∅41.5*(H)32.6mm | ||
| Cutout | ∅35mm | ||
| Installation | Recessed Mounted | ||
| Dimmable | PWM Dimmable | ||
| Certificates | CUL, UL, CE, RoHS | ||
| Warranty | 3 Years | ||
Mechanical Characteristics:
Material: aluminum housing, PMMA Cover, Epistar
Lamp color available: silver, white painting
Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40~50 degrees Celsius
Method of Installation:
Cut a hole ∅35mm on the ceiling, put the light in the hole, and the light will be fixed by springs.
Packaging Details:
| Net weight | 0.06KG |
| Gross weight | 0.07KG |
| Inner box size | 6x6x5.5cm |
| Carton size | 32x32x55cm |
| Quantity per carton | 100pcs |
Dimmable Mini LED Under Cabinet Light Applications:
1. Replacement for traditional recessed lights
2. Ceiling light
3. Shopping center
4. Walkway
5. Hotel
6. Restaurant
7. Entertainment places
8. Display case
9. Museum
10. Household
11. Entertainment places
Trade Terms:
1. Payment: T/T, L/C,Paypal,Western Union
2. Production lead time for 100-500pcs: 10 days, 500-10000pcs: 15 days
3. Sample can be delivered in 3 days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
Dimmable Mini LED Under Cabinet Light
More Options:
Dimmable Mini LED Under Cabinet Light
Tag : Dimmable 12V 3W LED Downlights
