WD-DL02 LED Downlight

Large Image :WD-DL02 LED Downlight

Product Details:

Place of Origin: Guangdong
Brand Name: WEDO LED
Certification: CE RoHS cUL UL
Model Number: WD-DL02
Payment & Shipping Terms:
Minimum Order Quantity: 7-12 Days
Delivery Time: 100pcs
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100,000pcs/month

Detailed Product Description

WD-DL02 Recessed UL cUL Listed 12V 3W Dimmable LED Downlight

Introduction:

WEDO’s LED round recessed down lights are energy-efficient LED recessed retrofits designed to replace conventional halogen and compact fluorescent (CFL) lights. They are widely used in hospitality, as well as in commercial, and residential locales. WEDO’s down lights come with reliable constant-current or constant voltage external drivers which guarantee reliable and excellent electrical performance.

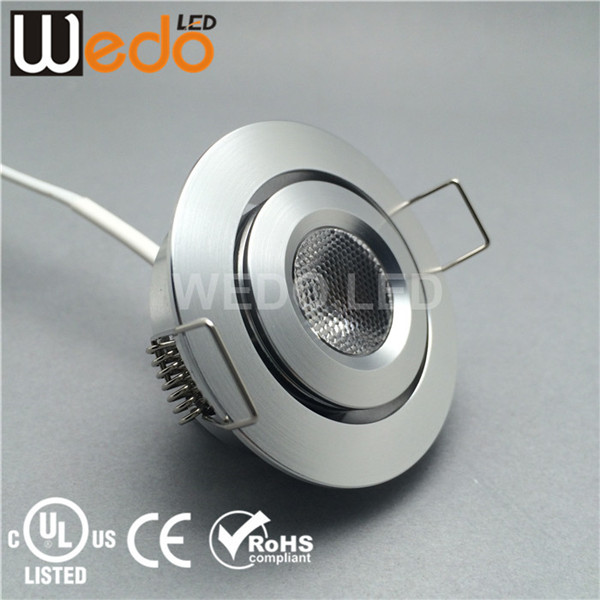

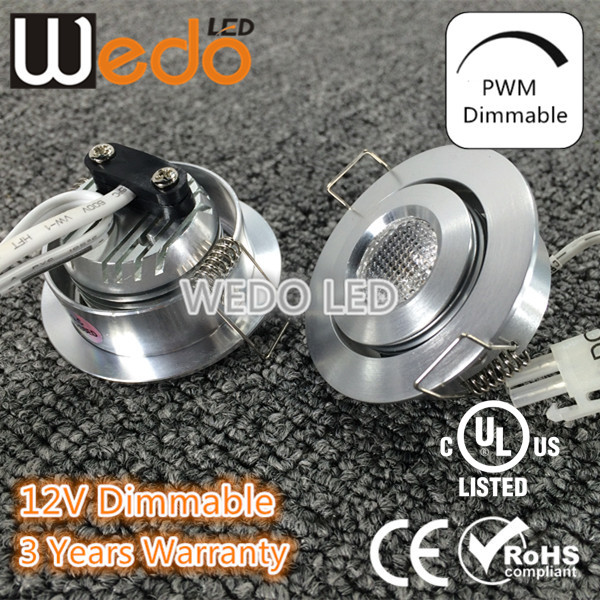

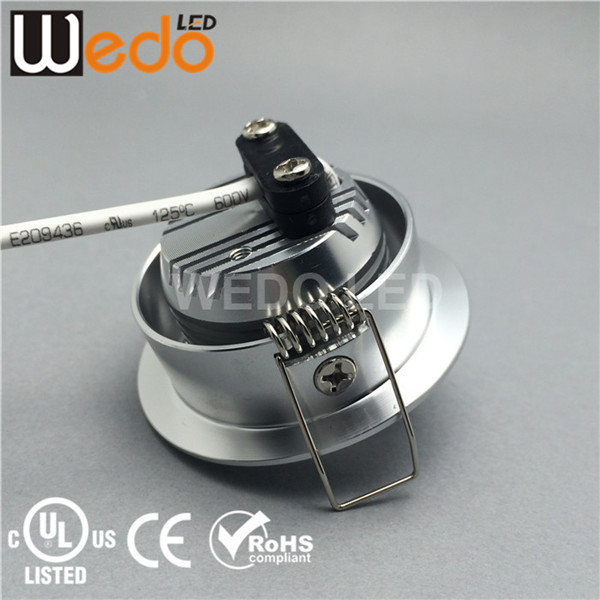

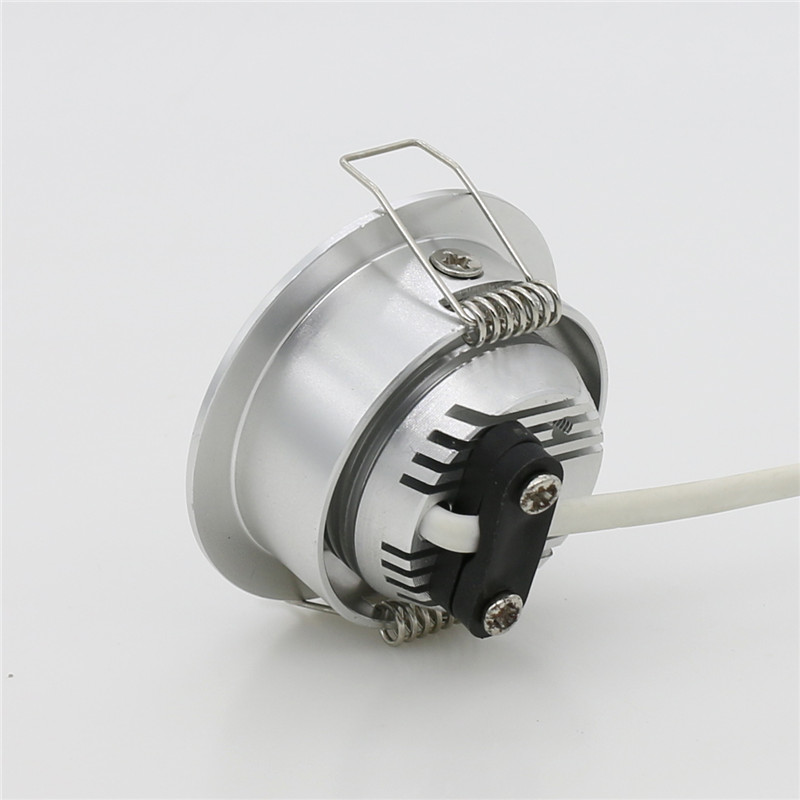

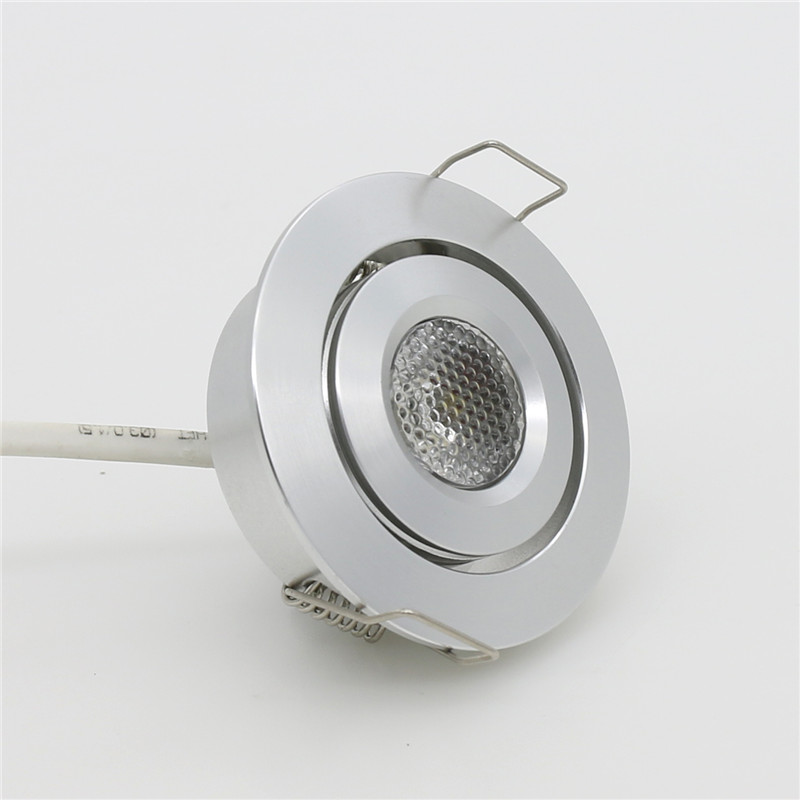

Product Picture:

Technical Parameters:

12V Dimmable LED Downlight
Model	WD-DL02
Input Voltage	12V DC
LED Power	3 Watt
Color Temperature	Cool White 6000-6500K	Neutral White 4000-4500K	Warm White 2800-3300K
LED Chp Brand	Epistar
Lumen Output	180lm	165lm	150lm
Beam Angle	15°, 30°, 45°, 60°
CRI	>80
IP Class	IP44 Indoor Use Only
Dimension	∅50*(H)33.3mm
Cutout	∅42mm
Installation	Recessed Mounted
Dimmable	PWM Dimmable
Certificates	CUL, UL, CE, RoHS
Warranty	3 Years

12V dimmable downlight.jpg

Mechanical Characteristics:

Material: aluminum housing, PMMA Cover, Epistar

Lamp color available: silver, white painting

Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius

Ambient temperature: -40~50 degrees Celsius

Method of Installation:

Cut a hole ∅35mm on the ceiling, put the light in the hole, and the light will be fixed by springs.

Packaging Details:

12V Dimmable LED Downlight
Net weight	0.06KG
Gross weight	0.07KG
Inner box size	6x6x5.5cm
Carton size	32x32x55cm
Quantity per carton	100pcs

12V Dimmable LED Downlight Applications:

1. Replacement for traditional recessed lights

2. Ceiling light

3. Shopping center

4. Walkway

5. Hotel

6. Restaurant

7. Entertainment places

8. Display case

9. Museum

10. Household

11. Entertainment places

Products Advantages:

1. 3 Year's warranty

2. CE, RoHS,cUL, UL approval

3. 48 hours aging test

4. OEM&ODM acceptable

5. Build-in constant current LED driver and powered by AC/DC power supply; It’s much more stable than that powered by external constant current driver

Trade Terms:

1. Payment: T/T, L/C,Paypal,Western Union

2. Production lead time for 100-500pcs: 10 days, 500-10000pcs: 15 days

3. Sample can be delivered in 3 days

4. Shipping freight are quoted under your requests

5. Shipping port: Shenzhen, Mainland China
