Detailed Product Description
Product Features
- Heat sink was adopted with high quality 160mm diameter sunflower aluminum, Surface Oxidation.
- Anodic Oxidation Spinning reflector can be seperated from heat sink of lamp, easy to tranport.
- High transparancy PC cover.
- High brightness original Bridgelux LED chip.
- Color temperature range from 2700K-7000K
- 45°/90°/120° beam angles optional.
- World-leading high efficiency LED driver-MEANWELL
- Start without delay and flicker free.
- No UV & IR, No Blinking and No Mercury & Lead free.
- High shock & vibration resistant and ideal heat dissipation design.
- Die-casting aluminum casing and high intensity toughened glass cover.
- Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light
Technical Parameters
|
Model
|
WD-HB45-30W / WD-HB120-30W
|
|
LED Power and Chip
|
1pc 30W Integrated Original Bridgelux LED Chip
|
|
System Power Consumption
|
33W
|
|
Power Factor
|
> 0.9
|
|
Driver Efficiency
|
>93%
|
| Input Voltage | AC 110-277V |
|
Frequency
|
50-60Hz
|
|
LED Luminous Efficiency
|
90LM/W
|
|
LED Lumen Output
|
4500LM
|
|
Color Temperature
|
2700-7000K
|
|
Color Rendering Index
|
CW > 75, WW > 70
|
|
Storage Temperture
|
－40℃-+80℃
|
|
Working Temperature
|
－40℃-+50℃
|
|
Beam Angle
|
45° / 120°
|
|
IP Rating
|
IP65
|
|
Lifespan
|
50,000hrs
|
|
Certificate
|
CE RoHS
|
|
Warranty
|
5 year
|
Packaging:
|
Item
|
Unit Weight (NW/GW)
|
PCS/Ct.n
|
Carton GW(KG)
|
CBM
|
|
Heat Sink
|
4.5/3.15
|
4
|
54*54*28
|
0.08
|
|
45° Reflector
|
0.5
|
20
|
49*40*55
|
0.11
|
|
120° Reflector
|
0.5
|
30
|
58*56*41
|
0.13 |
Product Size

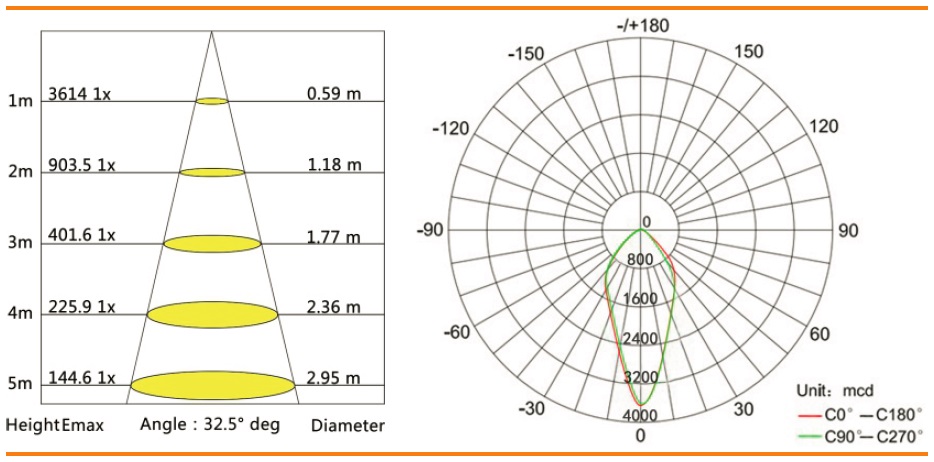

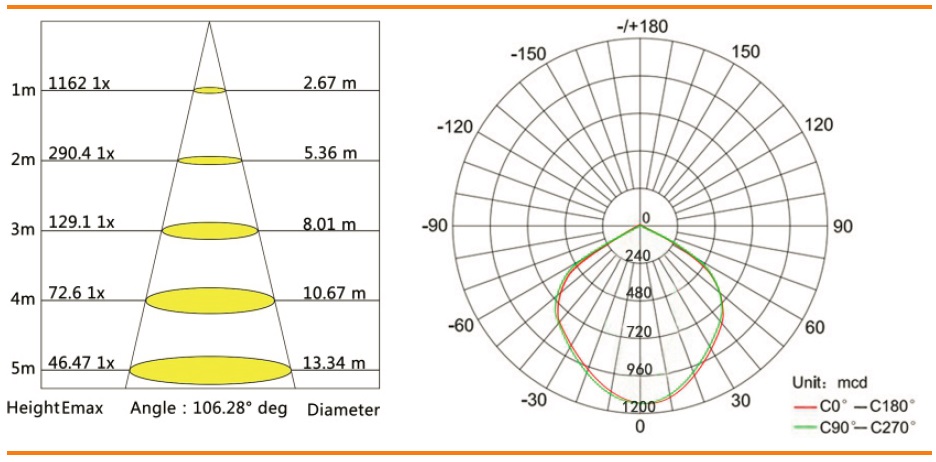

Spectrum Chart and Isolux Diagram
Applications
-
Workshops
-
Factories
-
Storehouses
-
Toll stations
-
Gas stations
-
Supermarkets
-
Exhibition halls
-
Gymnasium
