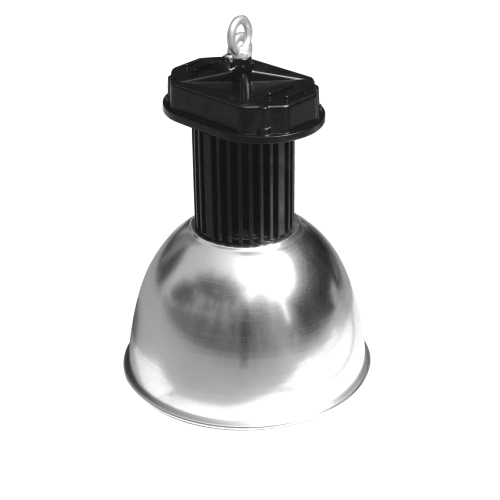

Detailed Product Description
Product Features:
-
AHeat sink was adopted with high quality 160mm diameter sunflower aluminum, Surface Oxidation.
-
Anodic Oxidation Spinning reflector can be seperated from heat sink of lamp, easy to tranport.
-
High transparancy PC cover.
-
High brightness original Bridgelux LED chip.
-
Color temperature range from 2700K-7000K
-
45°/90°/120° beam angles optional.
-
World-leading high efficiency LED driver-MEANWELL
-
Start without delay and flicker free.
-
No UV & IR, No Blinking and No Mercury & Lead free.
-
High shock & vibration resistant and ideal heat dissipation design.
-
Die-casting aluminum casing and high intensity toughened glass cover.
-
Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light
Technical Parameters:
|
Model
|
WD-HB45-80W / WD-HB120-80W
|
|
LED Power and Chip
|
1pc 80W Integrated Original Bridgelux LED Chip
|
|
System Power Consumption
|
88W
|
|
Power Factor
|
> 0.9
|
|
Driver Efficiency
|
>93%
|
| Input Voltage | AC 110-277V |
|
Frequency
|
50-60Hz
|
|
LED Luminous Efficiency
|
90LM/W
|
|
LED Lumen Output
|
4500LM
|
|
Color Temperature
|
2700-7000K
|
|
Color Rendering Index
|
CW > 75, WW > 70
|
|
Storage Temperture
|
－40℃-+80℃
|
|
Working Temperature
|
－40℃-+50℃
|
|
Beam Angle
|
45° / 120°
|
|
IP Rating
|
IP65
|
|
Lifespan
|
50,000hrs
|
|
Certificate
|
CE RoHS
|
|
Warranty
|
5 year
|
Packaging:
|
Item
|
Unit Weight (NW/GW)
|
PCS/Ct.n
|
Carton GW(KG)
|
CBM
|
|
Heat Sink
|
6.4/5.3
|
4
|
56*56*35
|
0.12
|
|
45° Reflector
|
0.5
|
20
|
49*40*55
|
0.11
|
|
120° Reflector
|
0.5
|
30
|
58*56*41
|
0.13 |

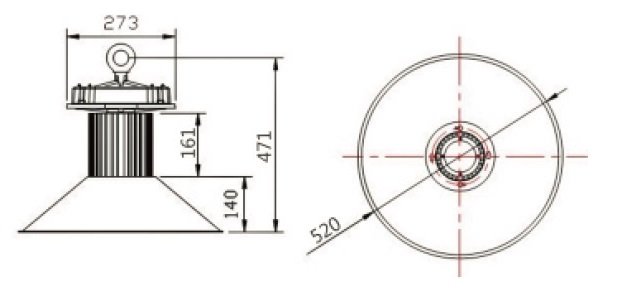

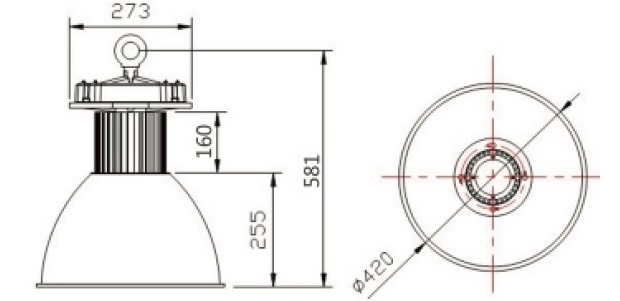

Product Size

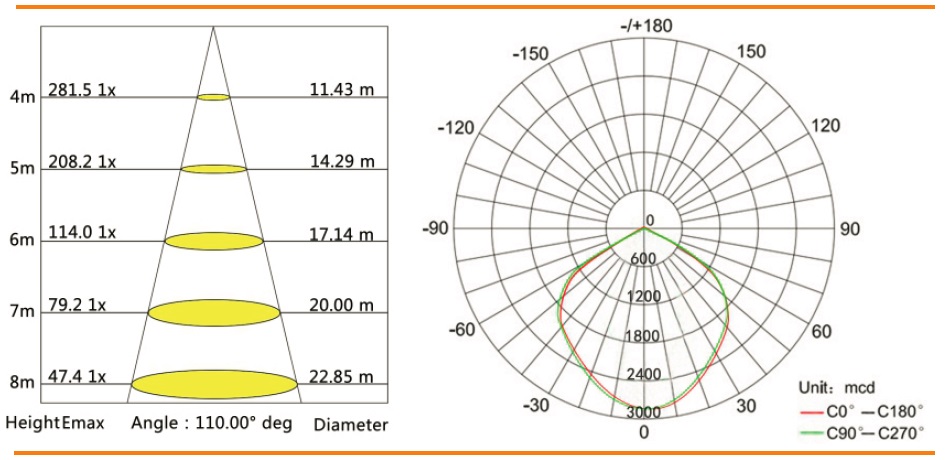

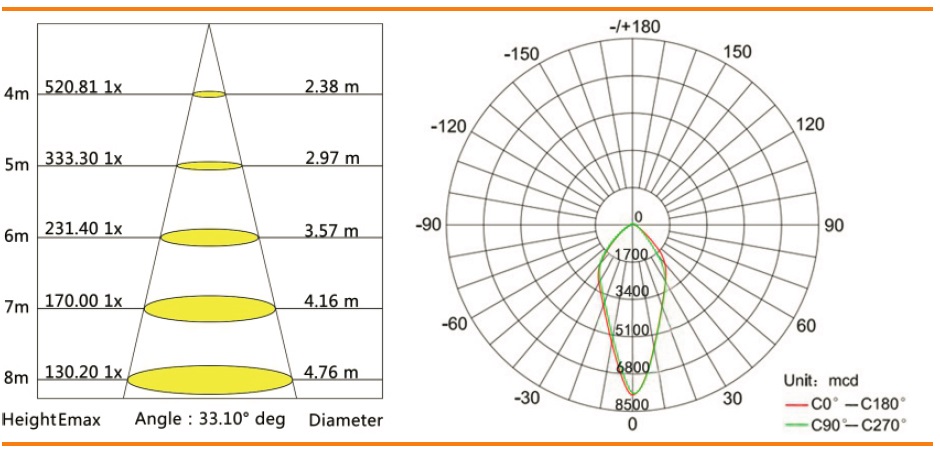

Spectrum Chart and Isolux Diagram:
Applications:
- Workshops
- Factories
- Storehouses
- Toll stations
- Gas stations
- Supermarkets
- Exhibition halls
- Gymnasium
